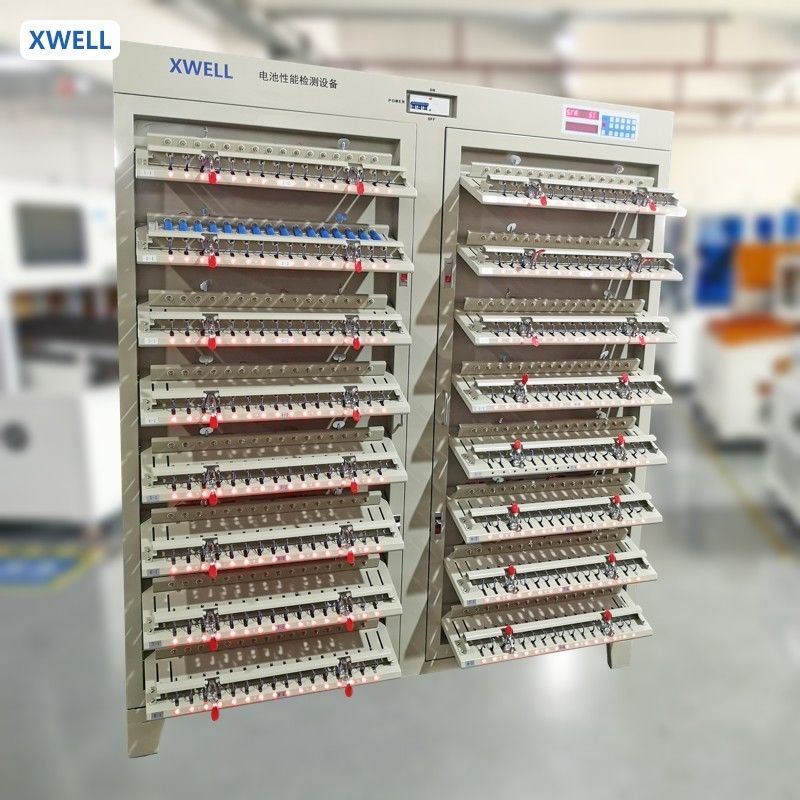

512 Channel 5V 3A Battery Grading Machine For Cylindrical Cell Testing

Marka Adı:	XWELL
Model Numarası:	XW-5V3A-512
Adedi:	1 adet
fiyat:	USD 7900/pcs
Paketleme Detayları:	ahşap kutu
Ödeme Koşulları:	T/T, Western Union, L/C

Detay Bilgisi

Ürün Açıklaması

Detay Bilgisi

Menşe yeri:

Çin

Sertifika:

Kanal voltajı ve akımı:

5V voltaj ve 3A akım

Kanal numarası:

512

Hücre türü:

18650, 21700, 26650, 32650, 32700

Giriş AC tipi:

3 fazlı AC380V ±%10/50Hz

Maksimum giriş gücü:

14kw

Gürültü:

≤65dB

AC güç kaynağı kablolama modu:

Üç fazlı beş telli bağlantı

Güç kaynağının güç faktörü:

≥0,99(Yük gücü, nominal gücün %30'undan fazladır)

Şarj kesme durumu:

Gerilim, akım, zaman, kapasite

Yetenek temini:

Ayda 100 adet

Vurgulamak:

512 channel battery grading machine

5V 3A cylindrical cell tester

battery cell grading machine with warranty

Ürün Açıklaması

512 Channel 5V 3A Battery Grading Machine For Cylindrical Cell Testing

Product Description

1. Basic Composition of Equipment

The equipment is mainly composed of computer, communication interface and battery detection cabinet. The battery detection cabinet is composed of a clamp and a board body for placing the clamp, a constant current and constant voltage source, a storage control circuit, a sampling circuit, a single chip microcomputer and a control panel.

2. Main Performance of Equipment

1) Each equipment can conduct constant current and constant voltage charging and constant current discharge tests on 512 batteries that meet the voltage range.

2) The constant current constant voltage power supply of the invention patent is adopted, and the switching from constant current to constant voltage has no impact. It is especially suitable for the charging requirements of lithium-ion batteries.

3) The equipment adopts AVR single chip computer as the control center and cooperates with the peripheral sampling circuit. It can not only be controlled by the superior computer. When the computer is connected to work, it can save the complete charge discharge curve of all channels, but also be separated from the superior computer and operated through the control panel to complete constant current and constant voltage charging, constant current discharge test, sorting according to time, etc.

Product Specification

Channel voltage and current	5V/3A
Channel number	512 Channnels
Parallel unit number per channel	1
Input AC type	3 phase AC380V ±10%/50Hz
Maximum input power	14KW
Noise	≤65dB
AC power supply wiring mode	Three-phase five wire connection
The power factor of power supply	≥0.99(The load power is more than 30% of rated power)
Total current distortion rate	THD≤5%
Conversion efficiency	Each link conversion efficiency is more than 85%
Voltage	Constant voltage setting range	Charging:0.02V~5V
	Minimum discharge voltage	Discharging:1V~5V
	Measuring range	0V~5V
	The voltage resolution	0.1mV
	Accuracy of control	±(0.05%RD+0.05%FS)
	Accuracy of measurement	±(0.05%RD+0.05%FS)
Current	Charging current setting range	0.02A~3A
	Discharging current setting range	0.02A~3A
	Measuring range	0A~3A
	The current resolution	16 Bit AD,DA
	Accuracy of control	±(0.05%RD+0.05%FS)
	Accuracy of measurement	±(0.05%RD+0.05%FS)
	Temperature drift	25PPM/℃
Power	Single channel maximum output power	30W
Time	Channel sampling time	0.1s
	Current response time	The maximum current rise time 20ms
	Steps setting time range	1min~1024min
	Time accuracy	±0.01%

XWELL factory

512 Channel 5V 3A Battery Grading Machine For Cylindrical Cell Testing 0

512 Channel 5V 3A Battery Grading Machine For Cylindrical Cell Testing 1

512 Channel 5V 3A Battery Grading Machine For Cylindrical Cell Testing 2

512 Channel 5V 3A Battery Grading Machine For Cylindrical Cell Testing 3

Cell grading machine package

512 Channel 5V 3A Battery Grading Machine For Cylindrical Cell Testing 4
