Automatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | XWELL |
| Sertifika: | CE |
| Model numarası: | MD-ADW |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | USD 11000 - 15000 / pcs |
| Ambalaj bilgileri: | Ahşap Kutu |
| Teslim süresi: | 10-15 gün |
| Ödeme koşulları: | T/T, Western Union, L/C |
| Yetenek temini: | Ayda 100 adet |
|
Detay Bilgi |
|||
| Renk: | İsteğe bağlı | Kafa Numarası: | 2 adet |
|---|---|---|---|
| Sistemi Çalıştır: | Yerleşik sistem | Kullanıcı Arayüzü: | Dokunmatik Ekran |
| Güç Kaynağı: | 5000A / 8000A / 10000A isteğe bağlı | Yeterlik: | 3800 adet/saat |
| Ekipman vuruşu: | 500*350 (mm) yaklaşık 760 18650 hücre | Maksimum yük kapasitesi: | 200-400 adet (standart 18650 lityum pil) |
| İşletim Sistemi: | gömülü sistem + insan - makine ekranı | İletim modu: | basamak + kayış + ithal hassas doğrusal kılavuz rayı (isteğe bağlı servo + vida) |
| Vurgulamak: | automatic numerical control spot welder,single-side rotary head spot welding machine,18650 21700 battery pack spot welder |
||
Ürün Açıklaması

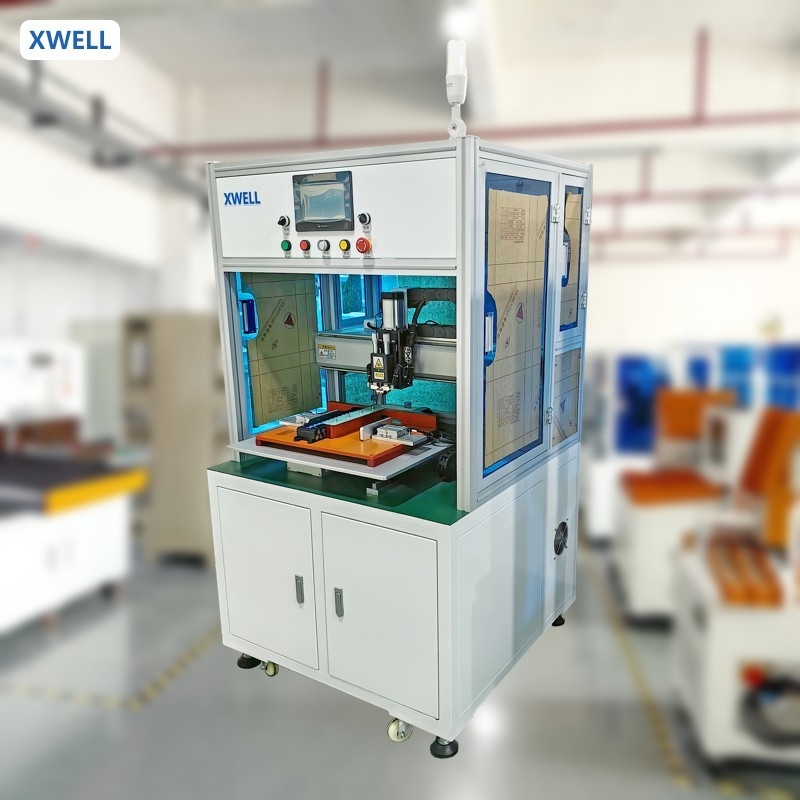

Automatic Single-Side Rotary Head Numerical Control Spot Welding Machine Welder For 18650/21700 Battery Pack Assembly
Description
Automatic battery spot welding machines play a key role in cylindrical battery pack assembly lines. When multiple cells are connected in series or in parallel to form a battery pack, the spot welding machine can quickly and accurately weld the tabs of the battery cells to the connecting pieces (such as nickel sheets), thereby forming a battery pack with a specific voltage and capacity to meet the power requirements of various applications.
Feature:
This equipment is mainly used for single-side and double-spot welding of batteries and nickel-plated steel strips or nickel strips in cylindrical/polymer battery assembly, and ensures that the welding tension between batteries and nickel-plated steel strips or nickel strips is greater than 30N. The spot welding range of the equipment can meet the welding requirements of 18650 batteries with 20 series battery packs and less than 20 series battery packs. The number of welding batteries is determined by the stroke, which can be set by man-machine.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
