Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Ürün ayrıntıları:
| Menşe yeri: | ÇİN |
| Marka adı: | XWELL |
| Sertifika: | CE |
| Model numarası: | Yalıtım Yayla Arpa Kağıdı |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 adet |
|---|---|
| Fiyat: | USD $0.1~$1000 |
| Ambalaj bilgileri: | Karton |
| Teslim süresi: | 5-7 gün |
| Ödeme koşulları: | T/T,Western Union,L/C,D/A,D/P |
| Yetenek temini: | Ayda 100000 PC |
|
Detay Bilgi |
|||
| Kalınlık: | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | Gelenek | Model numarası: | Aşağıdaki model listesine bakın |
|---|---|---|---|
| Ürün adı: | Highland Arpa Kağıt Bant | Renk: | mavi |
| kalınlık (mm): | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | Gelenek | Genişlik (mm): | 1 mm ila 1000mm arasında | Gelenek |
| Uzunluk (m): | 50 | 100 | 200 | 300 | Gelenek | Başvuru: | 18650 21700 26650 pil |
| Vurgulamak: | Highland Barley Paper Tape for lithium battery,18650 battery barley paper tape,21700 lithium battery adhesive tape |
||
Ürün Açıklaması

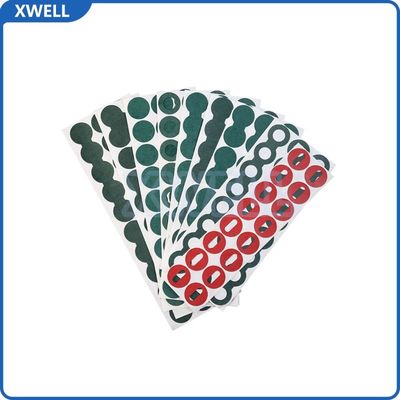

Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Product Overview
Our Insulation Highland Barley Paper is made laminating a polyester film to one layer of insulation paper. The product can be supplied cut in rolls, sheets or die-cut pieces according to customer specs. ideal for 18650/21700 lithium batteries as hollow insulating gaskets. Also fits high-temperature motors. Features green shell, offers reliable insulation, perfect for battery protection.
Key Features
- Universal Compatibility: Designed specifically for 18650/21700 lithium batteries as hollow insulating gaskets, with additional applications in high-temperature motors.
- Precision Engineering: Manufactured to standard specifications for reliable insulation, eliminating the need for additional cutting while effectively preventing current leakage.
- Thermal Stability: Maintains consistent performance under high-temperature conditions, ensuring safe operation of electrical equipment.
Technical Specifications
| Properties | Units | Values |
|---|---|---|
| Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.3 | 0.35 |
| Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 |
| Grammage and tolerance | g/m² | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 |
| Film Nominal Thickness | mm | 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.19 | 0.25 |
Primary Applications
- Battery Safety: Prevents insulation wear and short circuits that could lead to battery fires
- Component Protection: Serves as a durable spacer between metal components
- Extended Lifespan: Reduces wear and tear to prolong battery service life
Quality Assurance
- Compliant with UL and IEC electrical insulation standards
- Custom colors and sizes available for OEM requirements
- Competitive bulk pricing for large volume orders
